Controls Development Station

Title

Height adjustable workstation for industrial controls development.

Description

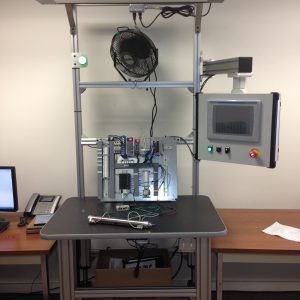

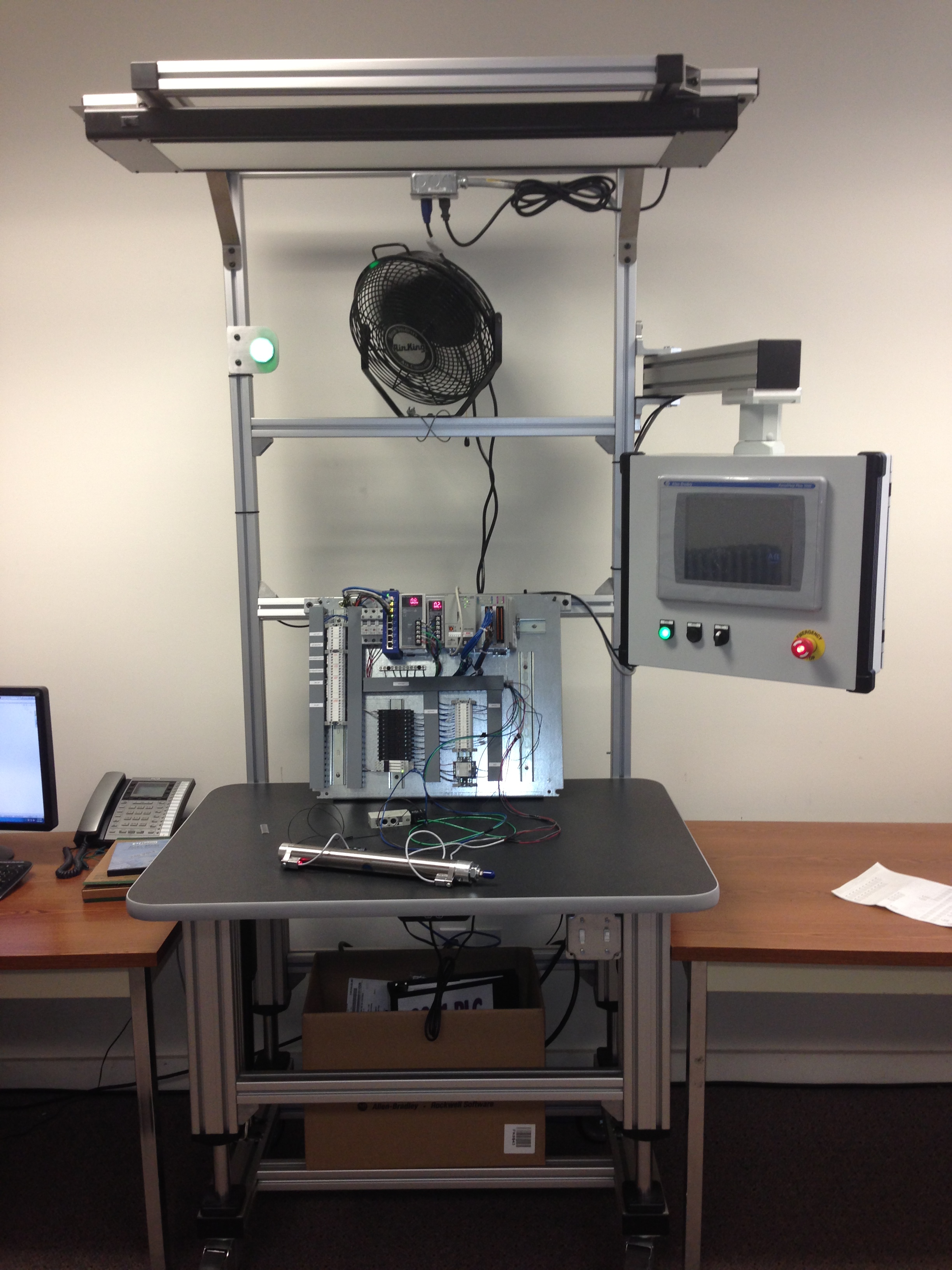

This work station was designed for electrical design testing and developing of machine controls. Testing of digital and analog sensors. Developing concept screen layouts. Testing of servo drive functions. There is a swivel mounted HMI enclosure. System integration of PLC and HMI using Allen Bradley hardware. The height-adjustable frame is built from aluminum t-slot extrusion for easy attachment of extra features.
